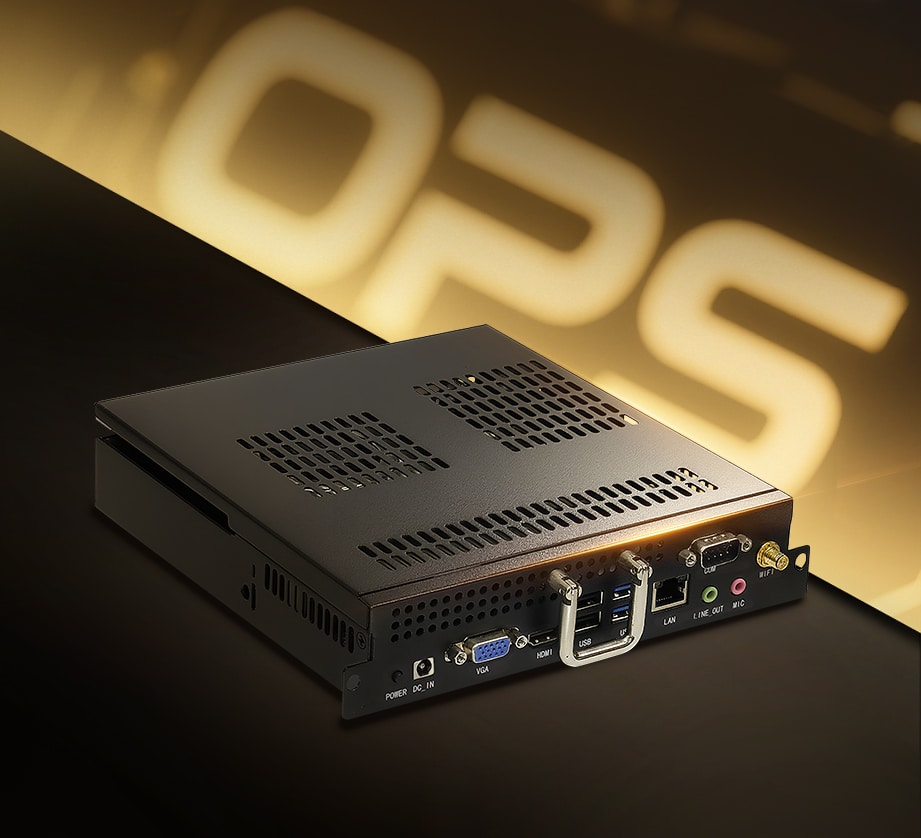

OPS i5｜OPS i7｜8+256G｜16+512G｜Windows11
強力な冷却
| OPS-01 | OPS-02 | OPS-03 | |
| CPU | i5-12450H | I7-12650H | I5-12600HX |
| 2.5 GHz，12C/16T | 2.5 GHz，12C/16T | 2.5 GHz，12C/16T | |
| Memory | 2* SO-DIMM DDR4 16G Memory | 2* SO-DIMM DDR4 16G Memory | 2* SO-DIMM DDR4 16G Memory |
| Storage | 512GB | 512GB | 512GB |
| 1* 2.5" SATA HDD/SDD | 1* 2.5" SATA HDD/SDD | 1* 2.5" SATA HDD/SDD | |
| GPU | Intel® UHD Graphics | Intel® UHD Graphics | Intel® UHD Graphics |
| Display Output | HDMI/DP/80Pin HDMI Supports synchronous dual display / asynchronous triple display | ||
| Net | LAN 1* 8111H 10M/100M/1000M Ethernet | ||
| WIFI 1*M.2 2230 for Wifi+BT | |||

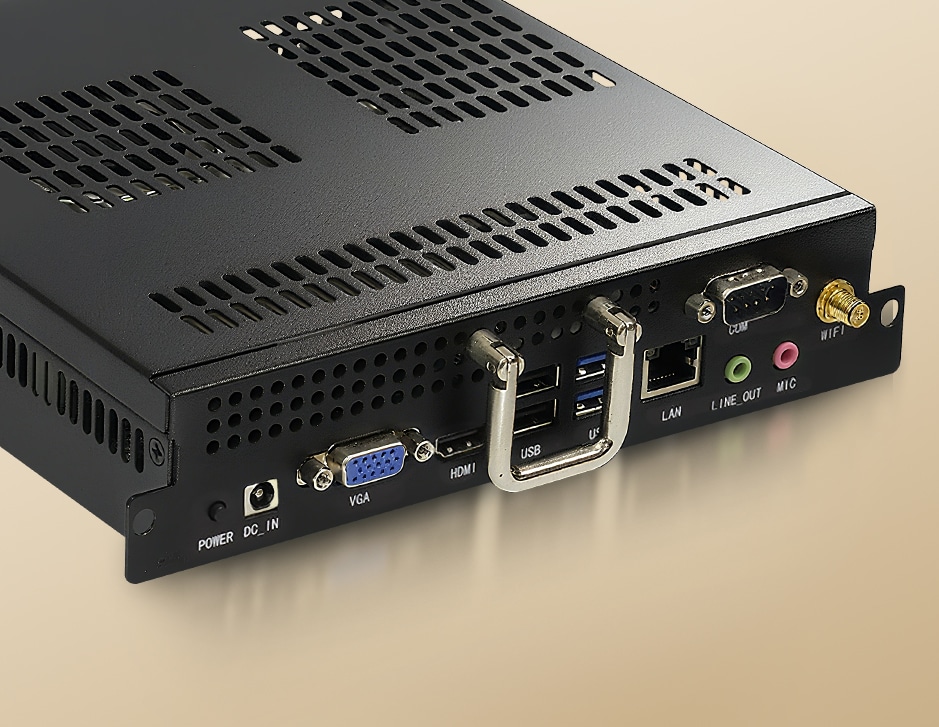

| Front I/O | 1 x HDMI 1.4，1 x DP1.2，2 x USB 2.0，4 x USB 3.0,1xType-C USB3.0，1 x RJ45，1 x MIC IN，1 x LINE OUT，2 x Wi-Fi/BT ANT，1 x Power button，1 x Reset Button，1 x Recover | 1 x HDMI，1 x DP，4 x USB3.1， 2x USB2.0， 1x Type-C USB3.1， 1x RJ45，1 x MIC IN，1 x LINE OUT，1 x Power button，1 x Reset Button，1 x Recover | |
| Rear I/O | OPS-C80pin:1xHDMI2.0，3xUSB2.0，1xUSB3.0 1x2.5/5.5DCINJACK | OPS-C80pin:1xHDMI2.0，1x2.5/5.5DCINJACK | |
| Power Input | 12V/19V(60±5W) | ||

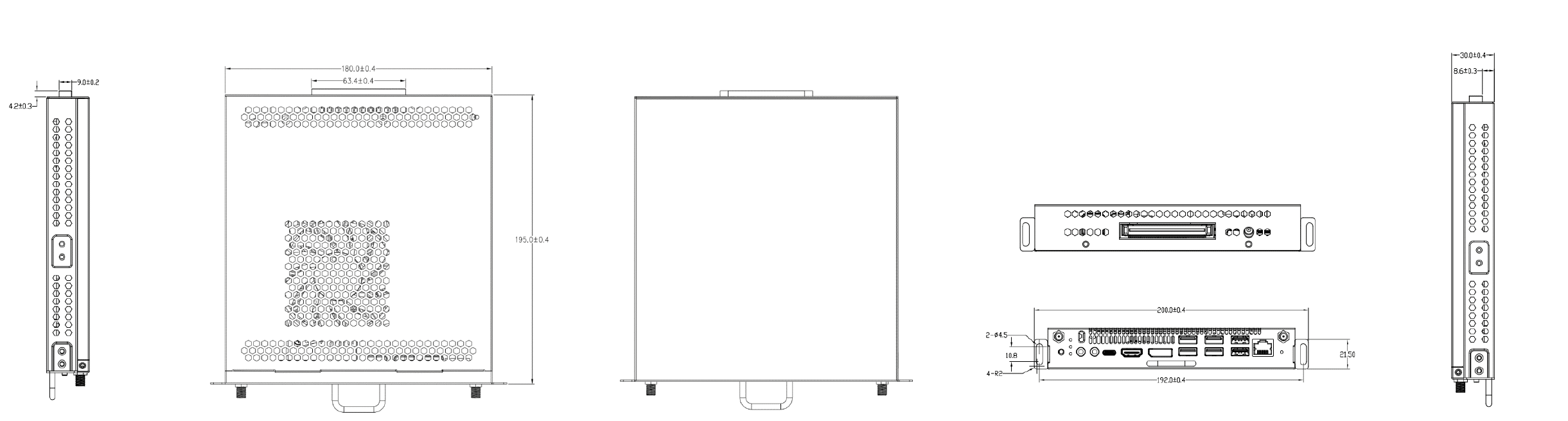

| Size（mm） | Barebone: 195*180*42/30mm（Optional） | ||
| Weight（kg） | Net weight≈1.2 Kg Gross weight≈1.4 Kg | ||
| Operating temperature | 0°C~ 45°C | ||
| Storage temperature | -40°C~ 80°C | ||
| Operating humidity | 10% - 95% @40°C No condensation | ||
| Supported OS | Windows 10/11, Linux | ||
