43″ / 55″｜4GB + 32GB｜1920 × 1080｜Android 11｜10 Titik Sentuhan｜Sentuhan Kapasitif

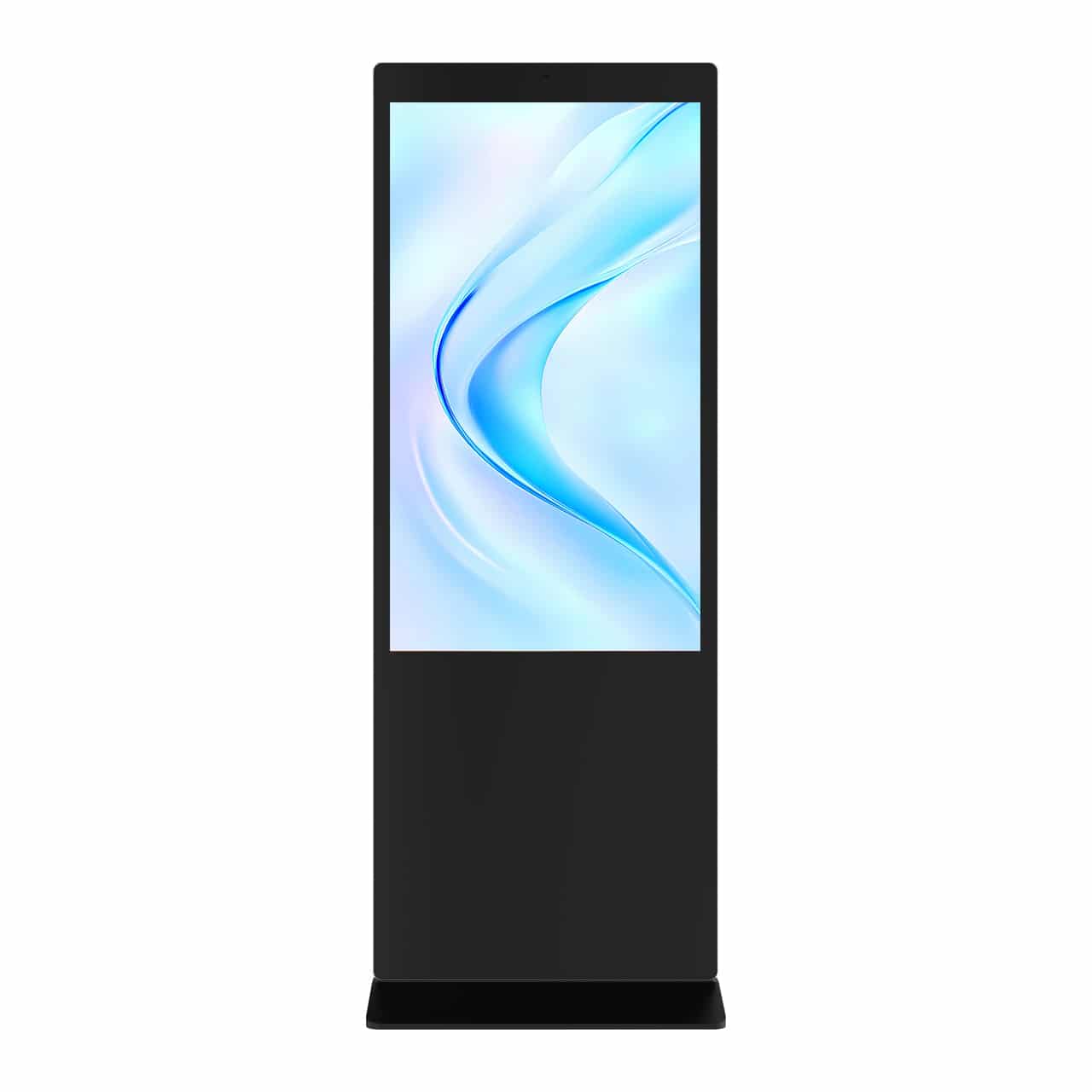

Skrin 43" / Skrin 55" LCD definisi ultra tinggi 4K Memaparkan visual sebenar dengan jelas
Bingkai aloi aluminium bertekstur berus Kaca tempered tahan hentakan Reka bentuk ultra nipis dengan panel LCD premium
Cip berprestasi tinggi dengan pemprosesan pantas Antara muka serbaguna untuk pengembangan mudah Sokongan menyeluruh untuk web, imej, audio, video dan lain-lain
Pelbagai templat terbina dalam Sokongan konfigurasi skrin berpisah yang fleksibel Memaparkan kandungan tersuai di setiap zon
Skrin sentuh 10 titik Teknologi sentuh kapasitif
Akses melalui telefon pintar, tablet dan komputer Sokongan jadual hidup/mati kuasa Memaparkan kandungan berbeza pada masa berbeza
Sokongan mod pembentangan untuk PPT dan video Membolehkan navigasi halaman ke atas dan ke bawah Sokongan penukaran program kecemasan
Sokongan pengelompokan fail tersuai Membolehkan pengkategorian merentas beberapa terminal papan tanda digital
| Key Hardware Specifications | ||
| Motherboard | CPU | Quad-core 64-bit Cortex-A55, up to 1.92GHz |
| Memory | 4GB | |
| Storage | 32GB | |
| Display Screen | Size | 43 inches |
| Resolution | 1920x1080 | |
| Brightness | 300cd/㎡ | |
| Contrast Ratio | 1200：1 | |
| Aspect Ratio | 16：9/9：16 | |
| Viewing Angle | Top:178°/Bottom:178°/ Left:178°/ Right:178° | |
| Viewable Area | See dimension diagram | |
| Response Time | 8ms | |
| Lifespan | ≥50000 hours | |
| Multimedia Formats | ||
| Video Formats | 1080P decoding for video formats including H.264, VP8, RV, WMV, AVSH.263, MPEG4, etc., as well as HTML5 video playback and Flash 10.1 playback | |
| Audio Formats | MPEG-1 Layers I, I, III 2.0 | |
| MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0 | ||
| 24-bit linear PCM 7.1 | ||
| MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A1, 3GP, etc. | ||
| Image Formats | BMP, JPEG, PNG, Animated GIF | |
| System Function | |
| Operating System | Android 11 |
| Language | Supports Chinese and English |
| Touch Specifications | |
| Touch Technology | Capacitive touch |
| Supported Touch Points | 10 Points |
| Basic Interface | |
| USB Port | X 2 |
| RJ45 Network Port | X 1 |
| HDMI-IN Port | X 1 |
| TF Card Slot | X 1 |
| Electrical Specifications | |
| Power Input | AC 100-240 V~(+/-10%) 50/60 Hz |
| Total Power | ≤110W |
| Operating Environment | |
| Operating Temperature | 0℃ ~ 45℃ |
| Operating Humidity | 10%～90％，non-condensing |
| Storage Temperature | -10℃ to 45℃ |
| Appearance Material | |
| Frame | Black aluminum profile |
| Rear Cover | Black sheet metal |
| Base | Black sheet metal |
| Dimensions | See dimension diagram |
| Outer Packaging | Neutral cardboard box |
| Accessories | Power cord, certificate of conformity, warranty card, etc. |
