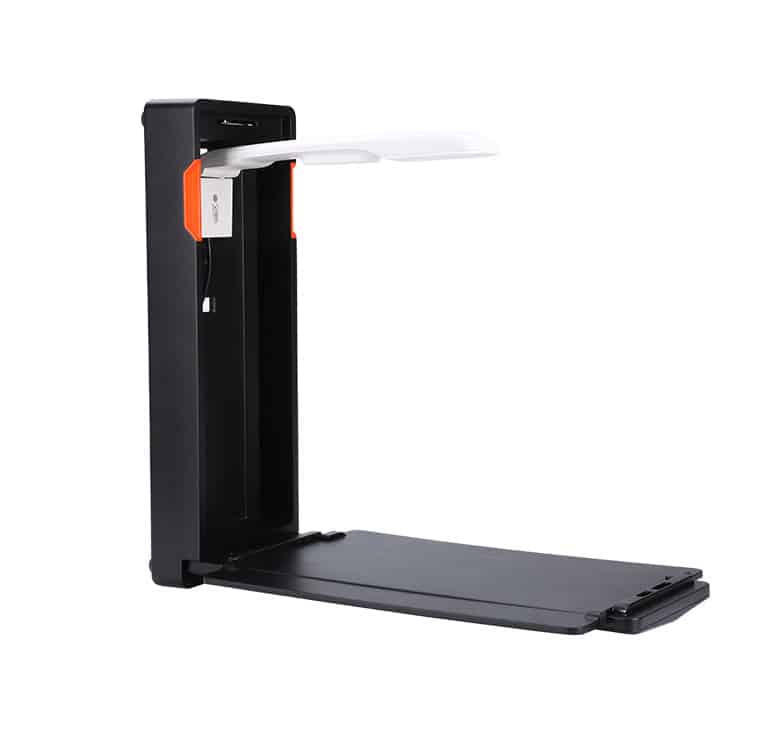

Kamera 12MP untuk menangkap imej buku teks dan memaparkan objek
Kamera 12MP untuk merakam buku teks dan memaparkan objek.
Reka bentuk julur (cantilever), mengurangkan bayang daripada juluran untuk penggunaan yang lebih mudah.
Paparan masa nyata, membolehkan zum masuk/keluar, putaran, pencahayaan tambahan, dan tangkapan imej dengan cepat, serta pelbagai fungsi lain.
Dilengkapi dengan pelbagai port USB untuk menyambungkan peranti luaran seperti pemacu kilat USB.
Menyokong kadar bingkai tinggi 60FPS untuk memastikan imej yang lancar tanpa kesan bayang (ghosting), serta menangkap setiap detik dengan sempurna.

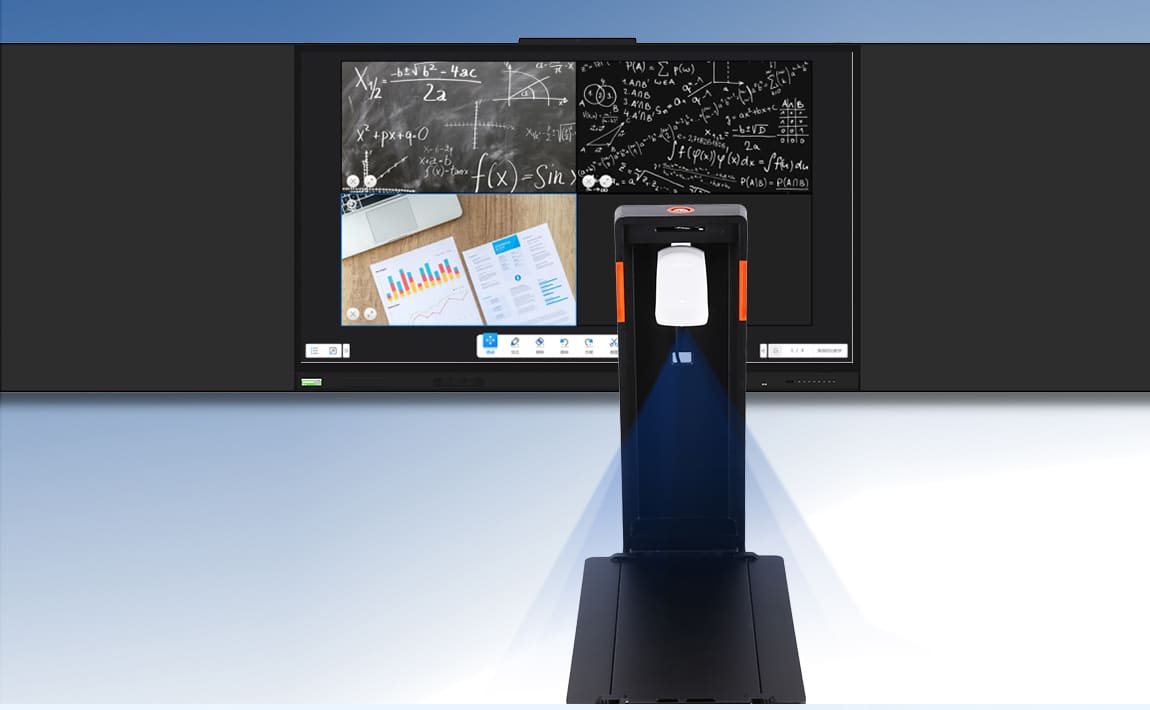

Menyokong Zum dan Pergerakan Serentak Skrin Pengimbas serta Kandungan Anotasi
| Main sensor features | 12MP |
| Output resolution | 1920*1080 2592*1944 3264*2448 |
| Power supply method | powered by USB |

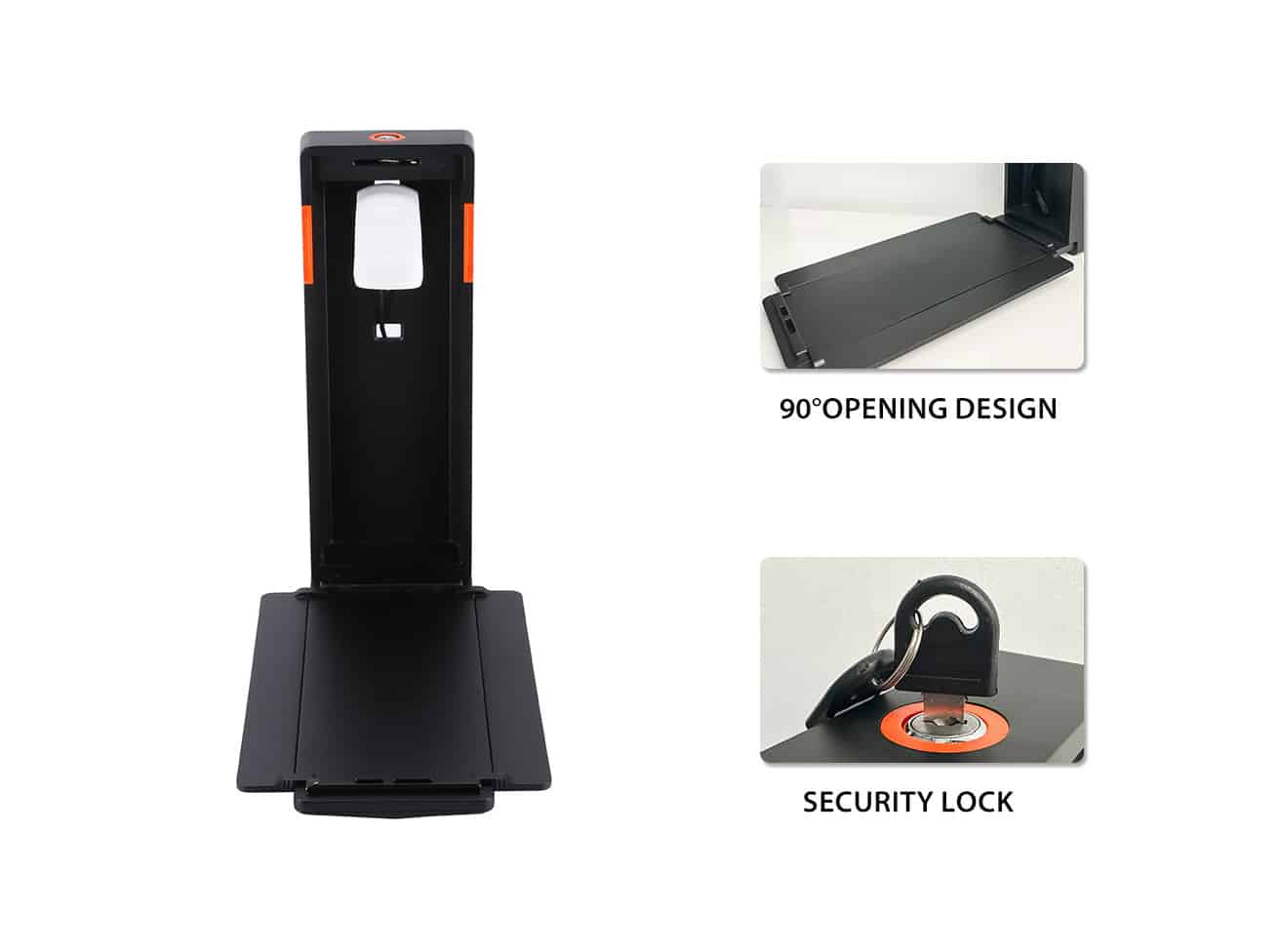

| Safety lock | support |
| Camera | high-definition camera with a 13MP fixed-focus lens |
| imaging area | Supports A4 or larger; Colors: 24-bit or higher. |
| Zoom | 12x digital zoom |
| fill light | 4-level touch control; LED fill light with adjustable brightness levels. |
| image compression | DSP built-in image compression. |
| White balance | Auto-calibration |
| Color compensation mode | Auto-calibration |
| Interface | One USB 2.0 Type-B connector for connecting to computers and all-inone devices to enable USB video output; two USB 2.0 Type-A expansion interfaces supporting USB flash drives or mice. |
| Installation method | Wall-mounted installation, without pneumatic support rods, featuring a design with no sharp corners or edges; utilizes a tri-fold flip-open tray that provides a surface area ≥ A4 size when unfolded. |
| Support bracket | The bearing capacity is no less than 3 kilograms. |
| Operating environment temperature | 10°C~50°C |
| Operating environment humidity | <85% |
| Storage environment temperature | -20°C~ 60°C |
| Storage environment humidity | <85% |
| Standby current | ≤150 mA |
| Operational current | <400mA |
| Product working dimensions | 428.2mm (L) * 216mm (W) * 392mm (H) |
| Packaging Box Dimensions | 440mm (L) × 116mm (W) × 188mm (H) |
| Weight | Net weight 1.5kg / Gross weight 2kg |
