i5 12th 8G+256G｜i5 12th 16G+512G｜i5 13th 16G+512G｜i7 12th 16G+512G

OPS PC MODULE

Pluggable Design

Fits conference panels, education AIOs, and commercial large displays.

Powerful Cooling

Ultra‑slim profile

Robust

Rich I/O

A large fan plus multiple heat pipes deliver strong airflow and rapid heat transfer to stay cool under heavy load.

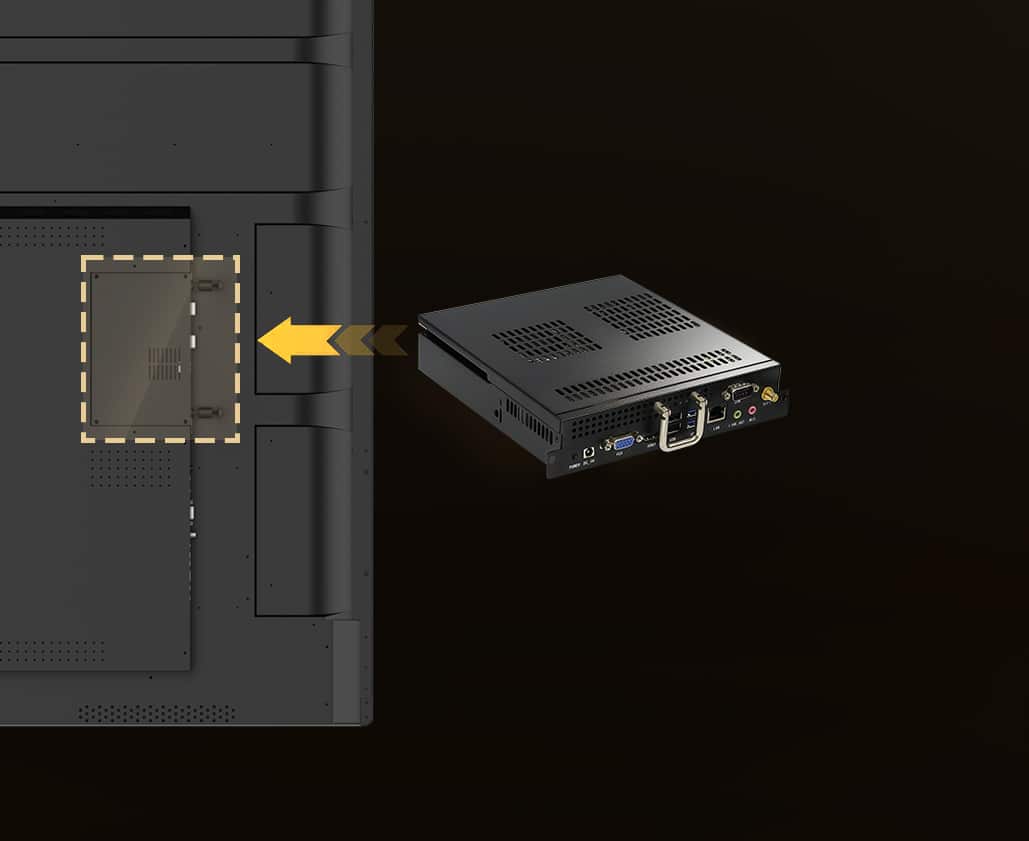

The high‑performance, compact OPS module enables rapid deployment and maintenance; plug‑and‑play boosts O&M efficiency.

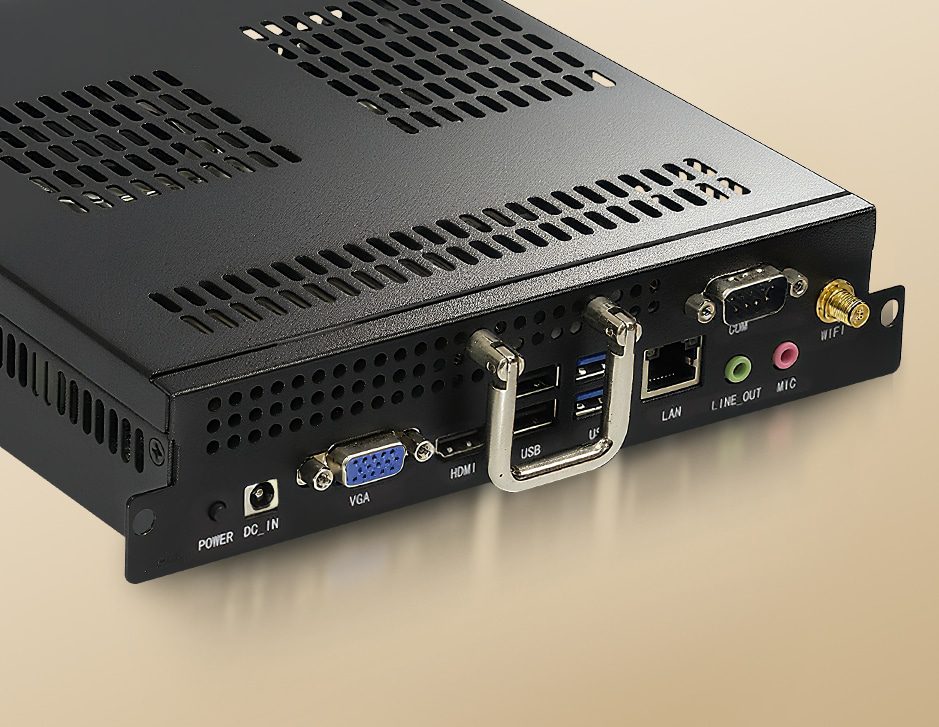

Comprehensive I/O covers office connectivity needs so collaboration is within easy reach.

	OPS-01	OPS-02	OPS-03
CPU	i5-12450H	I7-12650H	I5-12600HX
CPU	2.5 GHz，12C/16T	2.5 GHz，12C/16T	2.5 GHz，12C/16T
Memory	2* SO-DIMM DDR4 16G Memory	2* SO-DIMM DDR4 16G Memory	2* SO-DIMM DDR4 16G Memory
Storage	512GB	512GB	512GB
Storage	1* 2.5" SATA HDD/SDD	1* 2.5" SATA HDD/SDD	1* 2.5" SATA HDD/SDD
GPU	Intel® UHD Graphics	Intel® UHD Graphics	Intel® UHD Graphics
Display Output	HDMI/DP/80Pin HDMI Supports synchronous dual display / asynchronous triple display
Net	LAN 1* 8111H 10M/100M/1000M Ethernet
Net	WIFI 1*M.2 2230 for Wifi+BT
Front I/O	1 x HDMI 1.4，1 x DP1.2，2 x USB 2.0，4 x USB 3.0,1xType-C USB3.0，1 x RJ45，1 x MIC IN，1 x LINE OUT，2 x Wi-Fi/BT ANT，1 x Power button，1 x Reset Button，1 x Recover		1 x HDMI，1 x DP，4 x USB3.1， 2x USB2.0， 1x Type-C USB3.1， 1x RJ45，1 x MIC IN，1 x LINE OUT，1 x Power button，1 x Reset Button，1 x Recover
Rear I/O	OPS-C80pin:1xHDMI2.0，3xUSB2.0，1xUSB3.0 1x2.5/5.5DCINJACK		OPS-C80pin:1xHDMI2.0，1x2.5/5.5DCINJACK
Power Input	12V/19V(60±5W)

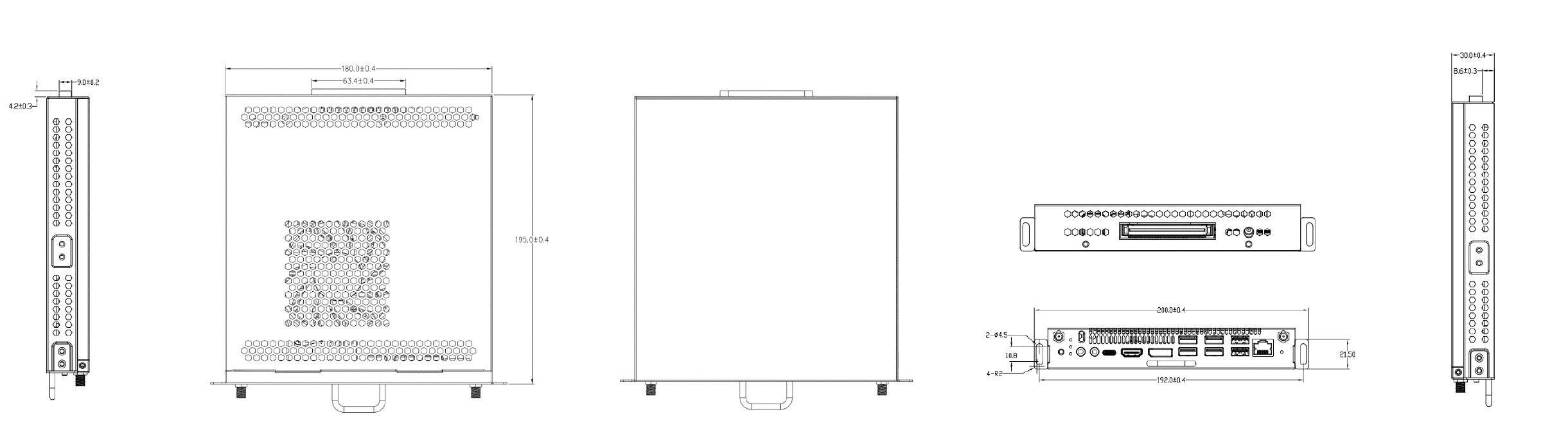

Size（mm）	Barebone: 19518042/30mm（Optional）
Weight（kg）	Net weight≈1.2 Kg Gross weight≈1.4 Kg
Operating temperature	0°C~ 45°C
Storage temperature	-40°C~ 80°C
Operating humidity	10% - 95% @40°C No condensation
Supported OS	Windows 10/11, Linux
