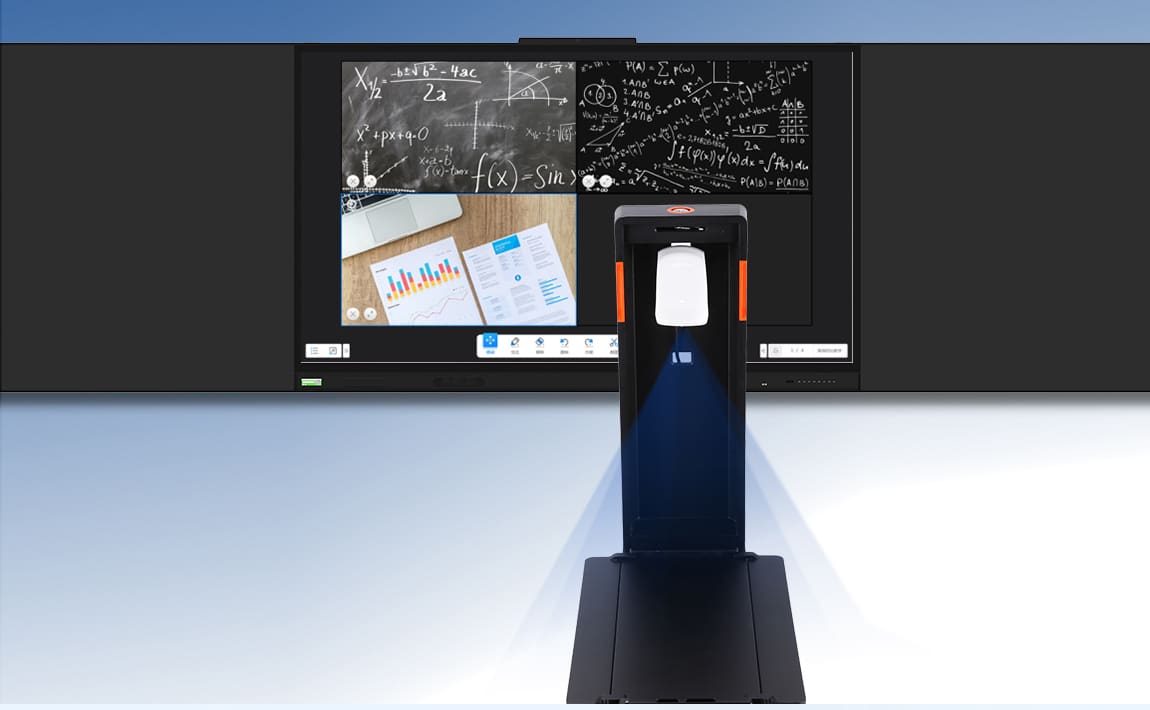

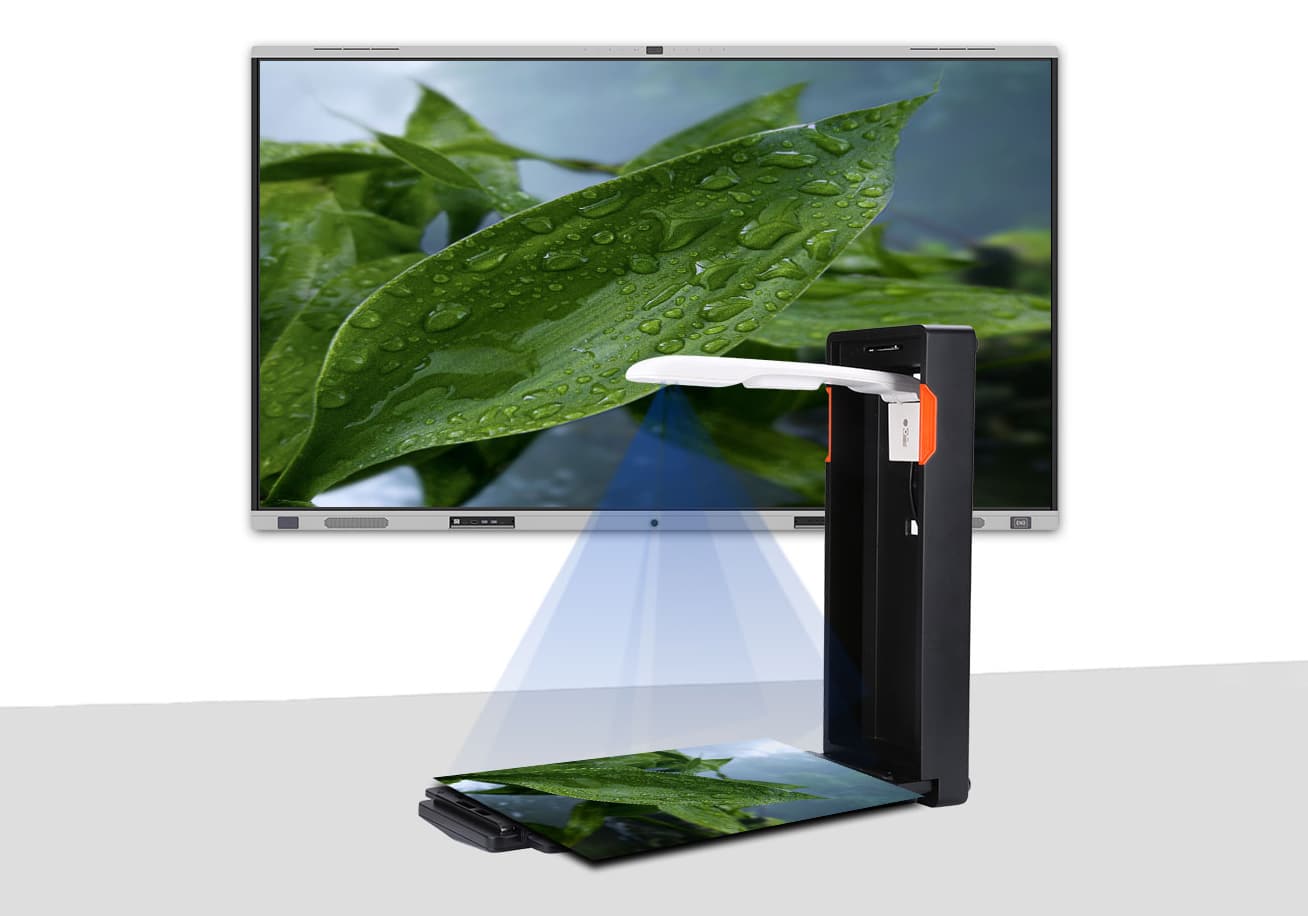

12MP camera for capturing textbook and displaying objects
教科書を撮影し、物体を表示するための13MPカメラ。
カンチレバー設計で、カンチレバーからの影を減らし、より便利に使用できます。
リアルタイム表示により、迅速なズームイン・ズームアウト、回転、照明の追加、画像キャプチャなどが可能。
外部デバイス（USBフラッシュドライブなど）を接続するための複数のUSBポートを搭載。
| Main sensor features | 12MP |
| Output resolution | 1920*1080 2592*1944 3264*2448 |
| Power supply method | powered by USB |

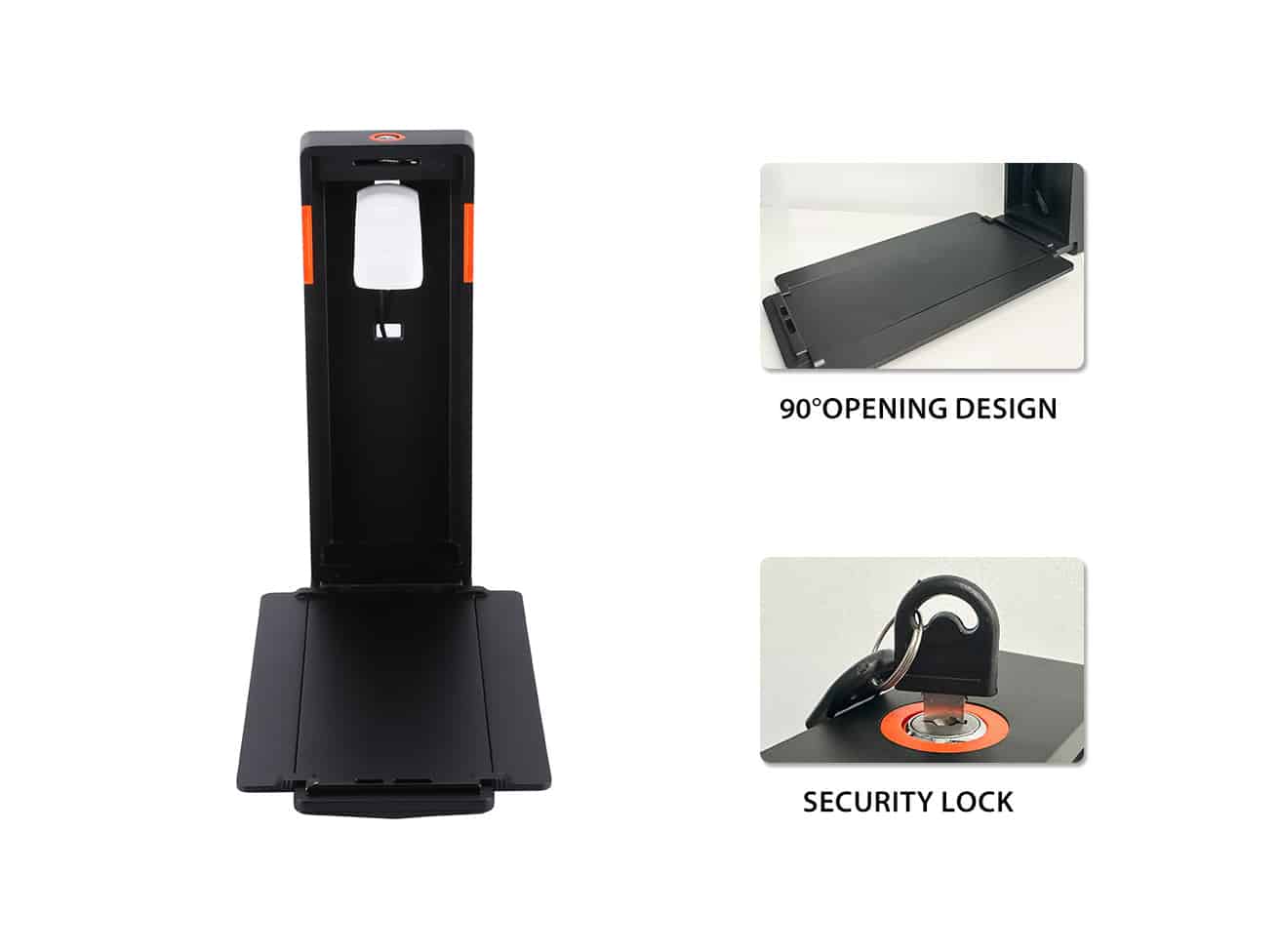

| Safety lock | support |
| Camera | high-definition camera with a 13MP fixed-focus lens |
| imaging area | Supports A4 or larger; Colors: 24-bit or higher. |
| Zoom | 12x digital zoom |
| fill light | 4-level touch control; LED fill light with adjustable brightness levels. |
| image compression | DSP built-in image compression. |
| White balance | Auto-calibration |
| Color compensation mode | Auto-calibration |
| Interface | One USB 2.0 Type-B connector for connecting to computers and all-inone devices to enable USB video output; two USB 2.0 Type-A expansion interfaces supporting USB flash drives or mice. |
| Installation method | Wall-mounted installation, without pneumatic support rods, featuring a design with no sharp corners or edges; utilizes a tri-fold flip-open tray that provides a surface area ≥ A4 size when unfolded. |
| Support bracket | The bearing capacity is no less than 3 kilograms. |
| Operating environment temperature | 10°C~50°C |
| Operating environment humidity | <85% |
| Storage environment temperature | -20°C~ 60°C |
| Storage environment humidity | <85% |
| Standby current | ≤150 mA |
| Operational current | <400mA |

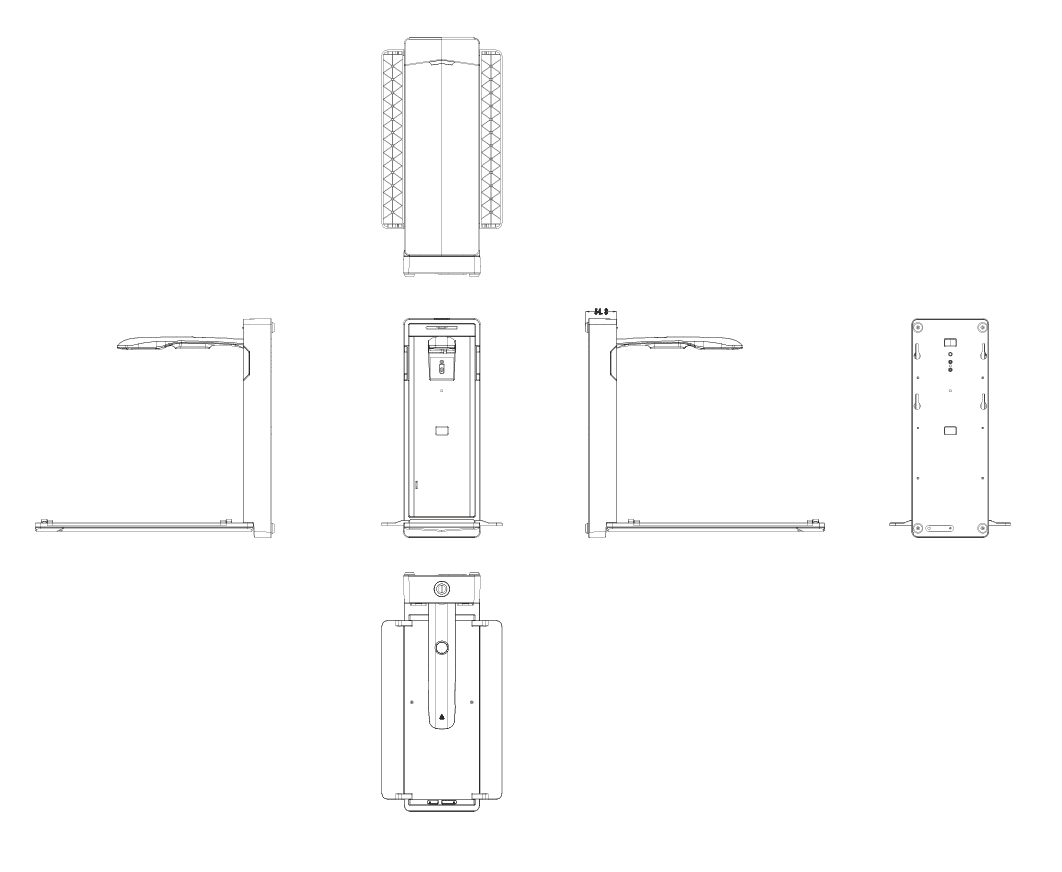

| Product working dimensions | 428.2mm (L) * 216mm (W) * 392mm (H) |
| Packaging Box Dimensions | 440mm (L) × 116mm (W) × 188mm (H) |
| Weight | Net weight 1.5kg / Gross weight 2kg |
